Description
Anatomical shape
T-shape saddle that guarantees greater freedom of movement thanks to a wider seating area. The set-back anatomical center allows the cyclist to easily vary positions by using the entire length of the saddle. The rounded anatomical shape of the Scratch M5 PAS 3D MSS provides extra support to the lumbar region, helping maintain a stable position even for those with limited pelvic mobility.
Technologies
In this saddle, the Multi Sector System technology, which features three different mapped zones separate from each other on each side of the saddle, each with its own density and elasticity coefficient, is made even more effective thanks to 3D printing. The PAS – Perineal Area System is the open channel in the middle of the saddle designed to eliminate pressure peaks and numbness, improving blood flow.
Base and Rail
The long-fiber carbon base and Nack (nano carbon fiber) rail make the saddle even lighter, stiffer, and more performing. The Tirox rail version, with an excellent weight-strength balance, provides the saddle with less stiffness and superior vibration absorption.
Technical Specifications
- High comfort thanks to 3D printing
- T-Shape and round shape
- Multi Sector System to accommodate the cyclist’s morphology
- PAS perineal channel to eliminate pressure peaks
- Long fiber carbon base
- Rail in Nack (carbon fiber, kevlar and aluminum filaments)

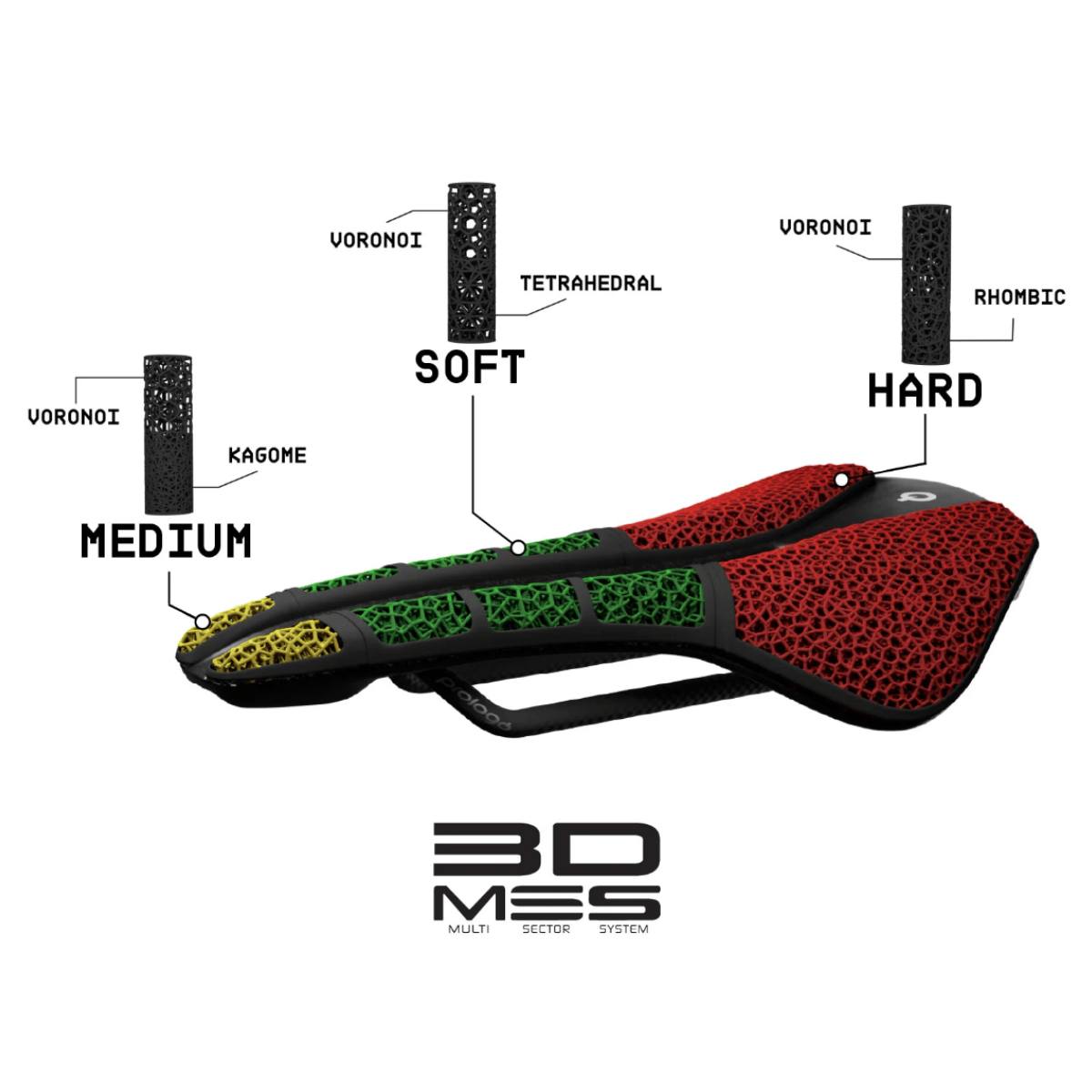

3DMSS: Multi Sector System Becomes 3D
The covers of the two Prologo 3D saddles combine the MSS (Multi Sector System) technology with an innovative 3D printing process. This allowed the creation of five separate sectors on each side of the saddle, optimizing adaptation to the individual pressure areas and supporting the cyclist’s morphology.
Each sector features different complex geometric shapes, varying densities, and differentiated elastic coefficients, depending on its position and function:
- The rear section features high density and an elevated elastic coefficient to provide greater support to the sit bones and assist in the traction phase of pedaling.
- The central section has low density and a medium elastic coefficient to offer maximum comfort where soft tissues make contact.
- The front section presents medium density and low elastic coefficient to provide good support when pedaling at the front of the saddle.
Specs
| Size | 250 x 140 mm |
| Saddle weight with Nack rail | 176 gr |
